RealOp Technology

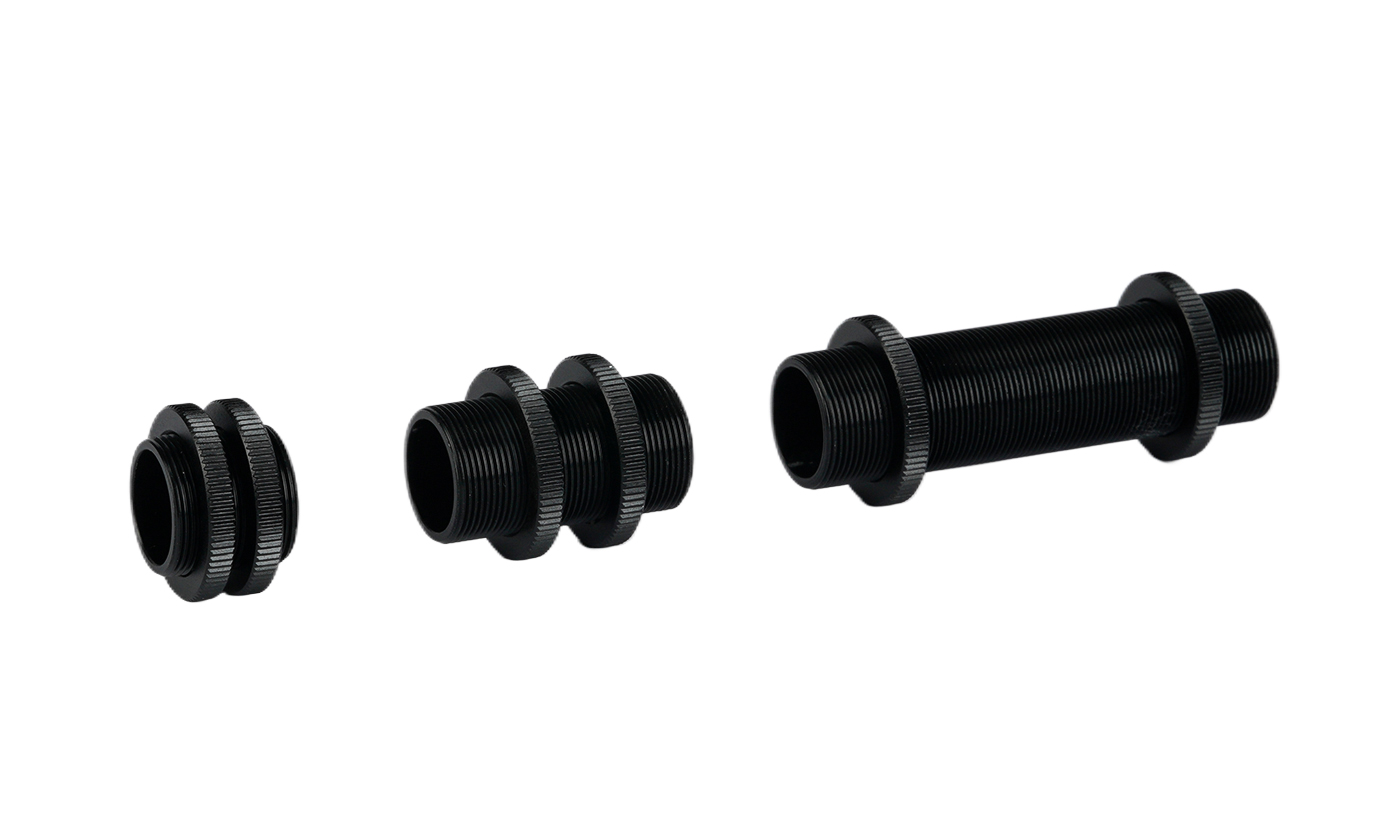

Lens Tube Couplers

Description

Compatible Lens Tubes: SM05, SM1, SM2, SM3

Includes 2 Locking Rings

Our Lens Tube Couplers are designed to seamlessly connect two internally threaded lens tubes while allowing easy adjustment of the distance between them. Compatible with SM05, SM1, SM2, and SM3 lens tube systems, each coupler includes two locking rings to securely fix the connected tubes. These couplers not only provide stable and precise alignment but also effectively block stray light and dust, ensuring optimal performance in optical setups.

Model	Threading	Length (mm)	Price	Shopping Cart
ZTL-05-0.5	SM05	12.7	$15.45	Add to Cart
ZTL-05-1.0	SM05	25.4	$17.05	Add to Cart
ZTL-05-2.0	SM05	50.8	$18.90	Add to Cart
ZTL-1-0.5	SM1	12.7	$16.70	Add to Cart
ZTL-1-1.0	SM1	25.4	$17.05	Add to Cart
ZTL-1-2.0	SM1	50.8	$18.90	Add to Cart
ZTL-1-3.0	SM1	76.2	$24.10	Add to Cart
ZTL-1-4.0	SM1	101.6	$29.15	Add to Cart
ZTL-2-0.5	SM2	12.7	$29.15	Add to Cart
ZTL-2-1.0	SM2	25.4	$30.00	Add to Cart
ZTL-2-2.0	SM2	50.8	$31.60	Add to Cart
ZTL-3-0.5	SM3	12.7	$31.85	Add to Cart
				Add to Cart

Lens Tube Flexure Sleeve Couplers

Description

Compatible with SM1 and SM2 Lens Tubes

Available in Lengths Ranging from 12.7 mm to 76.2 mm

Our Lens Tube Flexure Sleeve Couplers provide a secure and adjustable connection between SM1 and SM2 lens tubes. Lens tubes easily slide into the coupler and are fixed using two locking setscrews on the sides, ensuring stability while maintaining flexibility for adjustments. These couplers are ideal for creating seamless connections in optical assemblies.

Model	Compatible Lens Tubes	Inner Diameter (mm)	Outer Diameter (mm)	Price	Shopping Cart
ZTL-R1-0.5	SM1 Lens Tubes	30.56	37.1	$26.44	Add to Cart
ZTL-R1-1.0	SM1 Lens Tubes	30.56	37.1	$23.24	Add to Cart
ZTL-R1-3.0	SM1 Lens Tubes	30.56	37.1	$39.21	Add to Cart
ZTL-R2-0.5	SM2 Lens Tubes	56	62.54	$38.53	Add to Cart
ZTL-R2-1.0	SM2 Lens Tubes	56	62.54	$40.00	Add to Cart
					Add to Cart

Lens Tube Clamps

Description

Compatible with SM05, SM1, SM1.5, SM2, SM3, and SM30 Lens Tubes

M4 Mounting Hole

Our Lens Tube Clamps are designed for easy installation and removal of cylindrical objects. Compatible with SM05, SM1, SM1.5, SM2, SM3, and SM30 lens tubes, they feature a flip-open design that allows direct removal of objects by loosening the locking screw. With M4 mounting holes for secure attachment to optical posts, these clamps provide a user-friendly solution for versatile optical setups.

Model	Compatible Lens Tube OD (mm)	Height (mm)	Mounting Hole(s)	Price	Shopping Cart
ZTL-SZ0.5	18	30.61	M4 Counterbore	$31.27	Add to Cart
ZTL-SZ1.0	30.6	47.4	M4 Counterbore	$33.82	Add to Cart
ZTL-SZ1.5	43.5	60	M4 Counterbore	$36.52	Add to Cart
ZTL-SZ2.0	56	73.6	M4 Counterbore	$37.34	Add to Cart
ZTL-SZ3.0	81.5	100.8	M4 Counterbore	$42.71	Add to Cart
ZTL-SZ30	35.2	49.9	M4 Counterbore	$34.65	Add to Cart
					Add to Cart

Lens Tube Slip Rings

Description

Compatible with SM05, SM1, SM2, SM3, and SM30 Lens Tubes

M4 Mounting Hole

Lens Tube Slip Rings are compact connectors compatible with SM05, SM1, SM1.5, SM2, SM3, and SM30 lens tubes. Their flat-sided design saves space in tight setups, while a locking screw secures cylindrical objects firmly in place. Equipped with M4 mounting holes, these slip rings can be mounted on optical posts for stable and efficient integration into optical systems.

Model	Compatible Lens Tube OD (mm)	Height (mm)	Mounting Hole(s)	Price	Shopping Cart
ZTL-Z0.5	17.8	17.9	M4 Tap	$15.74	Add to Cart
ZTL-Z1	30.5	30.6	M4 Tap	$18.60	Add to Cart
ZTL-Z2	55.9	56.0	M4 Tap	$23.65	Add to Cart
ZTL-Z3	81.3	81.4	M4 Tap	$30.45	Add to Cart
ZTL-Z30	35.1	35.2	M4 Tap	$21.40	Add to Cart
					Add to Cart
